1.Discription:

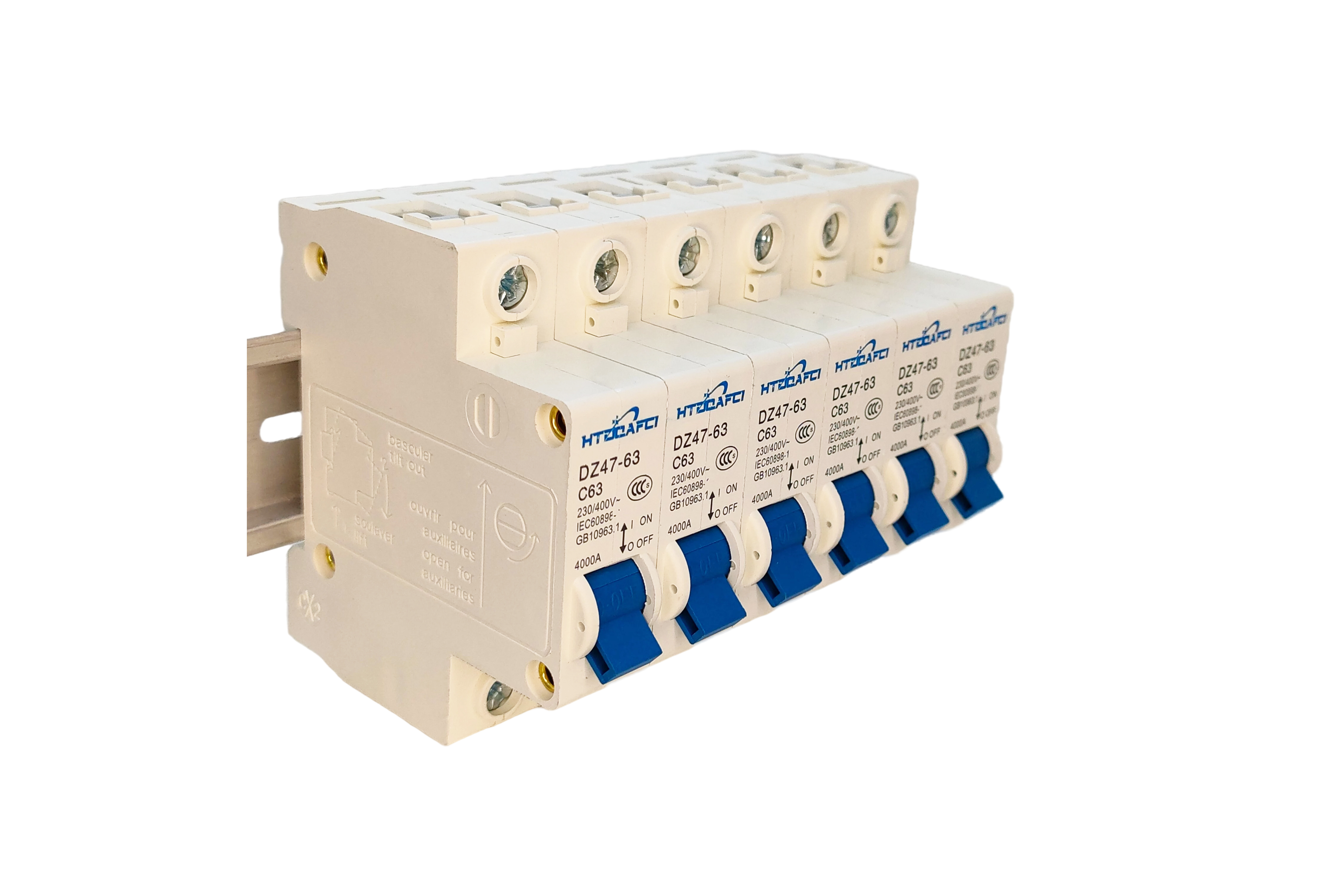

DZ47-63 Miniature circuit breaker has novel structure,reliable performance,high breaking capacity,pleasing outlook and small size,Its case and items are adopted by high fire-resistant and shockproof plastics,It mainly used in the building office,house and similar building for illuminating at AC 50Hz/60Hz,rate voltage below 230/400V,rated current below 63A,distribution circuit and equipment overload,short circuit protection.It can also be used for unfrequent switch over of the circuit under normal conditions
This product conforms to the requirement of IEC60898 and GB10963.1 standards.
2.Application:
Protection for sub-main circuits Light and power
Motor starting applications
Electrical office equipment
Industrial plants
Electrical hand tools
Socket outlets
Protection for sub-main circuits Light and power
Motor starting applications
Electrical office equipment
Industrial plants
Electrical hand tools
Socket outlets
3.Specification
Curve :B-type, C-type, D-type
Curve :B-type, C-type, D-type
Rated voltage(V)230/400
Rated current(A)6, 8, 10, 16, 20, 25, 32, 40, 50, 63
Rated frequency(Hz)50/60
Rated short-circuit capacity6000A(In<=40A), 4500A(In=50A/63A
Number of poles1, 2, 3, 4StandardIEC60898
|
Brand Name
|
HTDQAFCI, HTDQAFCI
|
|
Color
|
White
|
|
Rated Voltage
|
230V
|
|
Supply Capacity
|
20000pcs/Month
|
|
OEM ODM
|
OEM ODM
|
|
Standard
|
IEC61009
|
|
Rated Frequency
|
50/60Hz
|
|
Material
|
PA66
|
|
Poles Number
|
1 ,2,3,4P
|
