Description

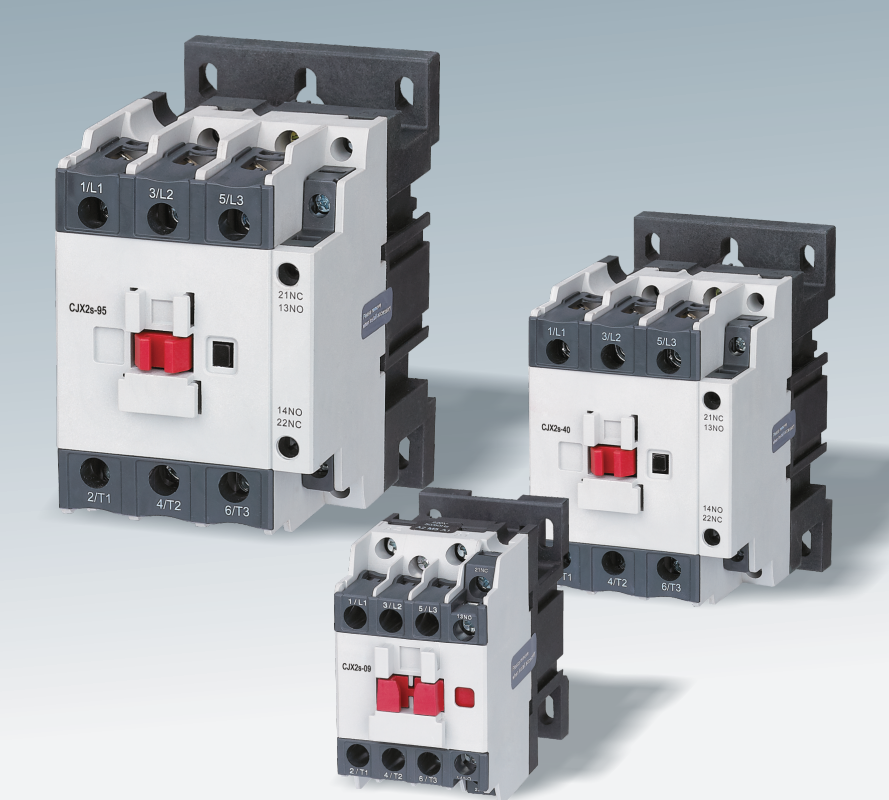

Contactor LC1-D OLD series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~330A under AC-3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4.
Installation, Use And Maintenance
1. Check the technical data (if the rated voltage, current, operating frequency, match the power.) of the coil before installation.
2. When installing, it should be installed in accordance with the prescribed installation conditions, and the terminal a1 mark of contact with the coils should be facing up, in line with human visual habits.
3. wiring screw should be tightened, check the wiring is correct, should be in the case of the main contact is not charged, the suction coil is first electrified several times, the test action is reliable before it can be put into use.
4. installation should be careful not let screw, washer, wire connector and other foreign bodies fall into the contactor, so as not to make the movable part stuck or cause short circuit accident.
5. If any abnormal noise is found during operating, it may be dirt on the iron core surface.Please clean the core surface.
6. During operating, all parts of the product should be inspected regularly, and the movable parts should be required to be free of blocking, the fasteners should not be loosened, and the parts should be replaced in time if they are damaged.
7. The contactor contacts due to arc burning black, burning hair phenomenon does not affect the use, not necessary to be filed, otherwise it will shorten the life of the contactor.
Ordering Instruction
1. Contactor name and model;
2. Coil rated operating voltage and frequency;
3. Order quantity;
4. If you need to order standard card details or accessories, it should be noted separately.
For sample: order CJX2-09 AC contactors, coil voltage 220V、50Hz, quantity 50 pcs.
Technical data
Type | Rated insulation voltage(V) |
Conventional thermal current(A) |
Rated operation current(A) |
Control power(kw) | No .of contacts |
Remark | ||||
220V | 380V | 415V | 440V | 660V | ||||||
LC1-0910 0901 |
660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO 3P+NC |
Installation method 1.with two screws 2.35mm din rail |
LC1-1200 1201 |
20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO 3P+NC |
||
LC1-1810 1801 |
32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO 3P+NC |
||
LC1-2510 2501 |
40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO 3P+NC |
||
LC1-3210 3201 |
50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO 3P+NC |
||
LC1-4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | Installation method 1.with three screws 2.75mm or 35mm din rail |
|
LC1-5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | |||
LC1-6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | |||
LC1-8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | |||
LC1-9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 |
Ty
pe |
LC1-09 | LC1-12 | LC1-18 | LC1-25 | LC1-32 | LC1-40 | LC1-50 | LC1-65 | LC1-80 | LC1-95 | ||
Pick-up voltage 50/60Hz(V) |
(0.85~ 1.1)Us |
(0.85~ 1.1) Us |
(0.85~ 1.1)Us |
(0.85~ 1.1)Us |
(0.85~ 1.1)Us |
(0.85~ 1.1)Us |
(0.85~ 1.1)Us |
(0.85 ~1.1)Us |
(0.85~ 1.1)Us |
(0.85~ 1.1)Us |
||
Release voltage 50/60Hz(v) |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
||
Coil power | 50Hz
60Hz |
Pick-up(VA) | 70 | 70 | 110 | 110 | 110 | 200 | 200 | 200 | 200 | 200 |
Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
Pick-up(VA) | 80 | 80 | 115 | 115 | 115 | 200 | 200 | 200 | 200 | 200 | ||
Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
Power consumption (W) |
1.8~2.7 | 1.8~2.7 | 3~4 | 3~4 | 3~4 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10 |
